Funnel-based Architecture for application Security on the Cloud - Part 1 - The Framework

As a Solution Architect, I've got a few opportunities to work with organizations facing security challenges on the cloud, especially with public facing applications. One of the most common issues I've encountered is a lack of visibility and control over their cloud environments.

To solve these security issues I've implemented a funnel-based framework for enhancing security on the cloud. This framework involves identifying the data flow within the cloud platform and implementing funnel points, which act as choke points at each layer for security controls. The last steps of the framework include increasing observability and continuous security improvements.

Below are the different steps :-

Step 1: Identify the Data Flow within the Cloud Platform

The first step in implementing a funnel-based framework for security on the cloud is to identify the data flow within the platform. It concerns understanding the data types processed through the platform and identifying the various stages in the data flow. It also includes getting to know every service or layer through the data flows.

Step 2: Implement Funnel Points

Based on the data flow, the next step involves implementing funnel points throughout the platform. Funnel points are choke points in the data flow where security controls are added at each layer to protect from threats. These funnel points are part of the Network, Transport, and Application Layers. These funnel points in the system may include network gateways, data storage, web and application services, and other components.

Step 3: Implement Security Controls at Each Funnel Point

At each funnel point, security controls at each layer or service protect the cloud environment. It includes access controls, encryption and decryption processes, network security controls, monitoring and logging mechanisms, vulnerability management, and incident response processes. Each security control design addresses a specific threat or vulnerability and works together to provide comprehensive protection for the cloud environment.

Step 4: Regularly Monitor and Update the Security Controls

Once the security controls are implemented in each layer, it is critical to regularly monitor and update them to ensure they are working effectively. It involves monitoring the platform for suspicious activity, regularly reviewing access controls, updating software and security patches, and testing the security controls to identify any weaknesses or vulnerabilities.

Step 5: Continuously Improve the Framework

Finally, to continuously improve the funnel-based framework for security on the cloud, it is critical to stay ahead of emerging threats and vulnerabilities. It involves staying up-to-date on the latest security trends and best practices, regularly reviewing the security controls to identify areas for improvement, and working with clients to identify new threats and risks.

By following these steps, I was able to implement a comprehensive funnel-based framework for security on the cloud that provided good protection against a wide range of threats and vulnerabilities. I will deep dive into the Funnel based Architecture with examples in Part 2.

Funnel-based Architecture for Website Security on the Cloud - Part 2 - Using Microsoft Azure Services

In Part 1 of the article, I described the Funnel-based framework and various steps to improve web application security on the cloud. In this article, I will cite a real-world example of how I used the funnel-based framework and designed a Funnel-based architecture to filter and analyze malicious traffic for a web application.

The layered approach of Funnel-based Architecture is essential in providing multiple levels of security to web applications. By having multiple layers of security, each layer is responsible for detecting and blocking various attacks, making it more challenging for attackers to breach several layers at once. If an attacker bypasses one layer of defense, the other layers can still provide protection, making it harder for them to compromise the web application.

Below is an example of a multi-layered funnel that blocks malicious web requests. As each layer provides an increased level of security. The diagram illustrates

a) The data or request flow from the browser, DNS, across edge layers, and all Azure services in the background.

b) All layered funnel points have independent layers to choke malicious traffic by ip filtering, Geo-blocks, custom WAF rules, rate limiting, content caching, etc.

c) Security controls at each layer or funnel point where access controls and restrictions using user authentication, authorization, audit trails, data encryption at rest, transit, via Intrusion Detection and Prevention System.

d) Deep Monitoring and Alerting of each layer and creating custom automated ways to update infrastructure and WAF rules, log analysis, auto threat detections, triggering application protection via scaling, captchas, static sites, etc.

e) Finally, continuous improvement by providing regular security assessments and benchmarking, performing penetration testing, security awareness training, incident response planning, etc.

Here are some examples of security tools that we used to create a Funnel-based Architecture on Azure:

1. Azure Firewall: A network layer security tool that provides a managed, cloud-based firewall service to protect Azure virtual networks and resources from network-based threats.
2. Azure Front Door: A global, scalable, and secure entry point that provides routing, caching, and load balancing of web traffic at the network layer.
3. Azure Application Gateway: A layer-7 load balancer that provides WAF and SSL termination capabilities to protect web applications from application-layer attacks.
4. Marketplace WAF: An Advanced WAF that provides robust in-house web application firewall protection by securing applications against layer 7 DDoS attacks, malicious bot traffic, all OWASP top 10 threats, and API protocol vulnerabilities.
5. Azure DDoS Protection: A layer 3/4 protection service that protects against DDoS attacks by automatically mitigating them in the Azure network before they reach the targeted resource.
6. Azure Key Vault: A cloud-based service that provides secure storage and management of cryptographic keys and secrets used by cloud applications and services.
7. Azure Sentinel: A cloud-native SIEM and SOAR solution that provides intelligent security analytics and threat intelligence across the enterprise.

Using Well Architect Framework to Address Technical Debt - Part 1

 Since getting my well-architected framework proficiency certification a year back, I have become a massive fan of the framework and have used it extensively at work. The Well Architected Framework is a tool with a set of standards and questionnaires that illustrates design patterns, key concepts, design principles, and best practices for designing, architecting, and running workloads in the cloud.

All major cloud providers like AWS, Azure, Google, and Oracle have defined the framework foundation, and they continue to evolve them with their platforms and services.

Organizations that have moved to the cloud have a different set of challenges. As all workloads are running in the cloud, the typical requirement from businesses is for more agility and focus on shipping functionalities to production. Teams are very less invested in improving the technical debts. This leads to more reactive rather than proactively continuous improvements and a huge pile load of epics to resolve.

The well-architected framework (WAF) suits really well for teams that are unaware of where to start with the technical debt in terms of priority. The fundamental pillars of the WAF are

a) System design b) Operational Excellence c) Security d) Reliability e) Performance f) Cost optimization and the newly added pillar g) Sustainability.

The framework can be fine-tuned to fit custom requirements based on the application domain. The framework is also apt to address typical Cloud challenges like the high cost of cloud subscriptions, Application Performance tuning, Cloud security, Operation Challenges in a Cloud or Hybrid setup, Quick recoveries from failure, and improvement on organizations' Green Index.

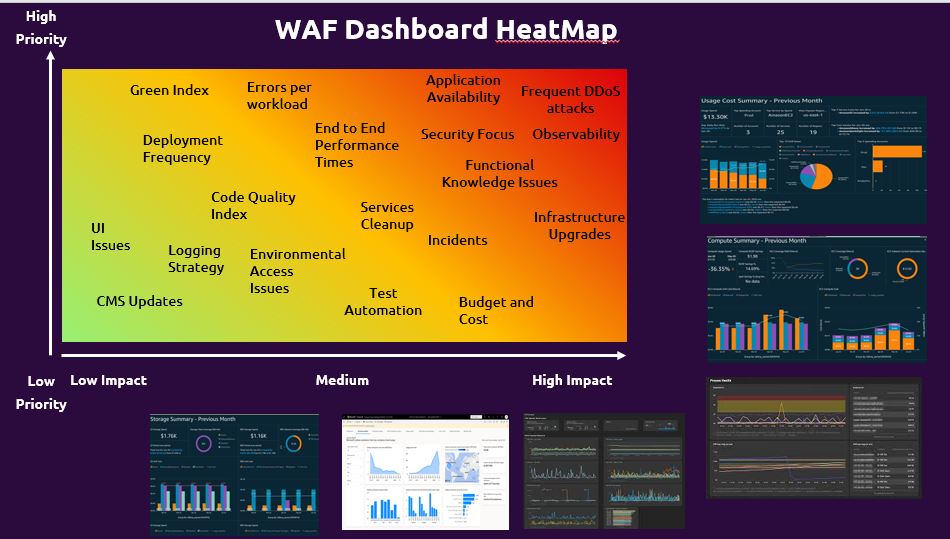

A dashboard helps to view the technical debts once the questionnaire is updated based on the WAF pillars. The below diagram illustrates the WAF dashboard heatmap and the technical debt based on prioritization and impact. The dashboard stresses the needed improvement and helps to measure the changes implemented by comparing them to all the possible best practices.

 Performing these reviews on a timely basis helps the team to identify unknown risks and mitigate the problem very early. The WAF reviews fit well with the Agile ways of working and the principle of Continuous improvement.

Below are the links to Well-Architected Frameworks described by different cloud vendors.

a) https://aws.amazon.com/architecture/well-architected

b) https://cloud.google.com/architecture/framework

c) https://docs.microsoft.com/en-us/azure/architecture/framework/

d) https://docs.oracle.com/en/solutions/oci-best-practices
